Ray Wrapper¶

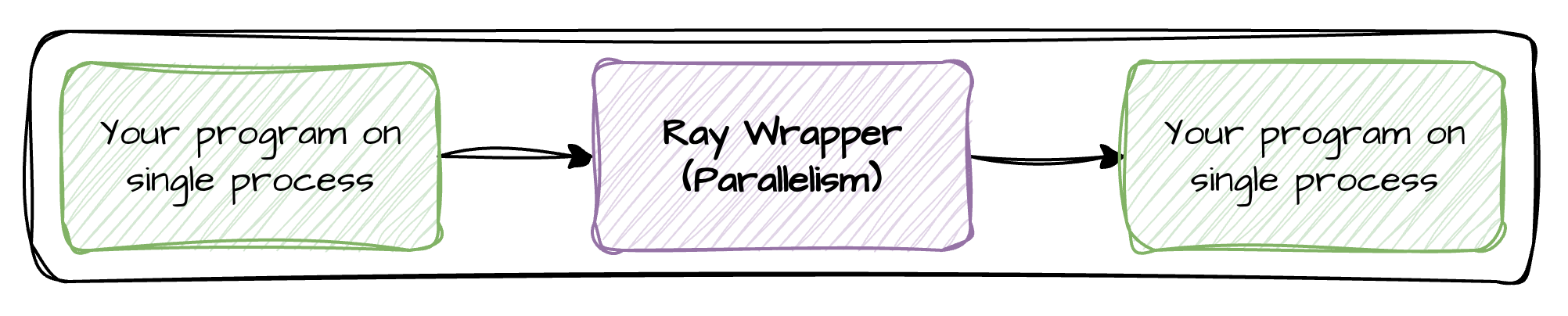

The Ray Wrapper lets Cache-DiT create and manage the distributed worker processes for you. After enabling it, user code can still look like normal single-process Diffusers code: load a pipeline, call cache_dit.enable_cache(...) with use_ray=True, then call the pipeline as usual.

alt text

This means you do not need to write manual distributed inference code. In the common case, you do not need torchrun, dist.init_process_group, rank/world-size branching, per-rank device placement, or explicit model sharding code. Cache-DiT starts Ray actors, places workers on GPUs, initializes the worker process group, transfers the model snapshot, applies Cache-DiT parallelism, and proxies calls back through the original pipeline object.

Baseline	Ray Wrapper with TP=2 + Compile
47.41s	24.57s

Installation¶

# Recommended: torch>=2.10, diffusers>=0.38.0, CUDA>=12.9
# Option 1: Install the latest stable release from PyPI (>= 1.3.6)
pip3 install -U "cache-dit[ray,parallelism]" -i https://pypi.org/simple
# Option 2: Install the latest develop version from GitHub
pip3 install git+https://github.com/vipshop/cache-dit.git

Please refer to the Installation docs for more details and installation options.

Pipeline Wrapper¶

We recommend the pipeline-level wrapper for the widest support of Cache-DiT features (cache, quantization, parallelism) and the simplest user experience. With it, Ray handles the entire pipeline execution, including text encoders, VAE, scheduler, and all other components.

import cache_dit
from diffusers import Flux2KleinPipeline
from cache_dit import ParallelismConfig

# Just let it load on CPU; Cache-DiT will handle GPU
# transfer inside the Ray workers.
pipe = Flux2KleinPipeline.from_pretrained(
  "/path/to/FLUX.2-klein-base-9B",
  torch_dtype=torch.bfloat16,
)

# NOTE: Will auto transfer to cuda inside by ray wrapper for
# pipeline-level parallelism, so we keep the original pipeline
# on CPU to avoid redundant GPU memory usage.
cache_dit.enable_cache(
  pipe,
  parallelism_config=ParallelismConfig(
    tp_size=2,
    use_ray=True,
  ),
)

# Call the pipeline as usual; No code changes are needed for
# Ray parallelism to work.
image = pipe(
  prompt="A cat holding a sign that says hello world",
  height=1024,
  width=1024,
  num_inference_steps=28,
).images[0]

image.save("ray_wrapper.png")

The code above is still a normal single-process script. Run it with python your_script.py; Cache-DiT and Ray handle the distributed execution internally.

Transformer Wrapper¶

You can also wrap only the transformer module. This is useful when you want the text encoders, VAE, scheduler, and other pipeline components to stay in the main process while only the transformer is executed by Ray workers.

The transformer-level wrapper is more generic but may slightly slower than the pipeline-level wrapper due to more frequent main-process <-> worker communication during denoising. It also does not support some Cache-DiT features such as cache hooks and quantization, which are applied inside the Ray workers and thus only work with the pipeline-level wrapper.

cache_dit.enable_cache(
  pipe.transformer,
  parallelism_config=ParallelismConfig(
    ulysses_size=2,
    use_ray=True,
  ),
)

# NOTE: Only the transformer is parallelized and transferred to GPU,
# so we need to move the pipeline to GPU as well for the forward pass.
pipe.to("cuda")
image = pipe(prompt="A cat holding a sign that says hello world").images[0]
image.save("ray_transformer_wrapper.png")

When the transformer-level wrapper is enabled, Cache-DiT patches the Ray-owned transformer so pipe.to("cuda") does not move the main-process transformer copy back onto the GPU. The executable transformer copies live inside the Ray workers.

Ray Transfer Fn¶

When ray_transfer_fn is set in ParallelismConfig, Cache-DiT bypasses all serialization (save_pretrained, object store, file snapshots). Instead, each Ray worker calls the user-provided function to create its own pipeline copy. This addresses two problems with the default transfer path:

Startup time: serializing and deserializing large models is slow. Workers loading independently in parallel is often much faster.
Custom modules: user-defined components (e.g., a custom libs/flux module) may not survive diffusers' from_pretrained class resolution. With ray_transfer_fn, the user controls the entire loading process.

ray_transfer_fn is only supported at the pipeline level. When set, ray_transfer_backend is silently ignored. For example:

import cache_dit
from cache_dit import ParallelismConfig
from diffusers import Flux2KleinPipeline

def make_init_fn():
  """Defined at module level so Ray cloudpickle can serialize it."""
  def _init_fn():
    return Flux2KleinPipeline.from_pretrained(
      "/path/to/FLUX.2-klein-base-9B", torch_dtype=torch.bfloat16,
    ).to("cuda")
  return _init_fn

config = ParallelismConfig(
  tp_size=2,
  use_ray=True,
  ray_transfer_fn=make_init_fn(),
)

# No need to pass a pipeline object; pipe_or_adapter defaults to None.
pipe = cache_dit.enable_cache(parallelism_config=config)

image = pipe(
  prompt="A cat holding a sign that says hello world",
  height=1024, width=1024, num_inference_steps=28,
).images[0]
image.save("output.png")

Key points:

ray_transfer_fn must be serializable by cloudpickle. Define it at module level (not inside main()) and avoid capturing large objects in closures.
When pipe_or_adapter is omitted (or None), enable_cache returns a callable RayPipelineEngine. Call it directly — no monkey-patched pipeline needed.
Cache hooks, parallelism, and quantization are still applied inside the workers after the function returns.

How to use LoRAs¶

For the best performance and full parallelism features support, we recommend fusing LoRAs into the base model before enabling the Ray wrapper. With unfused LoRAs, the Ray wrapper can still be enabled but only works with CP (Ulysses and Ring), not TP.

# First: fuse the LoRA into the base model.
pipe.fuse_lora()
# Then: enable the Ray wrapper with TP=2.
cache_dit.enable_cache(
  pipe,
  parallelism_config=ParallelismConfig(
    tp_size=2,
    use_ray=True,
  ),
)

Distributed Inference¶

Set the normal Cache-DiT parallelism fields and add use_ray=True. Please note that Tensor Parallelism (TP) will not work with unfused LoRAs due to the way TP shards the model, so we recommend fusing LoRAs into the base model before enabling the Ray wrapper for full parallelism features support. With unfused LoRAs, the Ray wrapper can still be enabled but only works with CP (Ulysses and Ring), not TP.

ParallelismConfig(tp_size=2, use_ray=True)
ParallelismConfig(ulysses_size=2, use_ray=True)
ParallelismConfig(ring_size=2, use_ray=True)

Torch Compile¶

Ray workers can compile the transformer after loading and applying Cache-DiT parallelism:

cache_dit.enable_cache(
  pipe,
  parallelism_config=ParallelismConfig(
    tp_size=2,
    use_ray=True,
    ray_use_compile=True,
  ),
)

If the transformer provides compile_repeated_blocks(), Cache-DiT calls that method first. Otherwise it falls back to transformer.compile() when available.

Cache and Quantization¶

When use_ray=True, cache hooks and quantization are applied inside the Ray workers after the model snapshot is loaded. This preserves the same user-facing enable_cache API while avoiding main-process hooks or quantized modules being lost during model transfer.

from cache_dit import DBCacheConfig
from cache_dit import ParallelismConfig
from cache_dit import QuantizeConfig

cache_dit.enable_cache(
  pipe,
  cache_config=DBCacheConfig(...),
  parallelism_config=ParallelismConfig(
    tp_size=2,
    use_ray=True,
  ),
  quantize_config=QuantizeConfig(...),
)

Ray Runtime Env¶

When your application code (custom pipeline classes, helper modules) lives in a directory that is not part of the default Python path, Ray workers cannot import those modules. This causes ModuleNotFoundError during worker-side model loading or pickle deserialization.

Cache-DiT exposes ParallelismConfig.ray_runtime_env to pass a Ray runtime_env dictionary to ray.init(). The most common and lightweight pattern is to use env_vars to set PYTHONPATH:

import os

cache_dit.enable_cache(
  pipe,
  parallelism_config=ParallelismConfig(
    ulysses_size=2,
    use_ray=True,
    ray_runtime_env={
      # Single or multiple paths can be added, separated by ":" or " "
      "env_vars": {
        "PYTHONPATH": f"/path/to/your/app/src:{os.environ.get('PYTHONPATH', '')}",
        # "PYTHONPATH": "xxx/path1:xxx/path2:xxx/path3",
      }
    },
  ),
)

What is PYTHONPATH?¶

PYTHONPATH is a Python environment variable that specifies additional directories where Python searches for modules. When Python starts, it appends each :-separated path in PYTHONPATH to sys.path, before the standard-library and site-packages entries. Multiple paths are supported:

"PYTHONPATH": f"/app/src:/app/libs:/shared/utils:{os.environ.get('PYTHONPATH', '')}"

Ray workers receive env_vars entries as process environment variables — nothing is packaged, zipped, or uploaded. Workers resolve import your_module directly from the filesystem path. env_vars vs working_dir / py_modules listed as below:

field	behavior	large files (>2 GB)
`env_vars.PYTHONPATH`	sets an environment variable; zero packaging	works
`working_dir`	zips the entire directory, uploads to workers	fails — Ray packaging times out or errors
`py_modules`	packages the module tree, uploads to workers	fails — same packaging issue

Rule of thumb: when your module tree contains model weights (e.g. a 54 GB FLUX.1-dev checkpoint), always use env_vars.PYTHONPATH. The files must be accessible from every worker node via a shared filesystem (NFS, Lustre, or — on a single-node cluster — the local disk).

Pre-initialized Ray¶

If you already called ray.init() before cache_dit.enable_cache(), Cache-DiT will not re-initialize Ray and therefore cannot inject the runtime_env from ParallelismConfig. In that case, configure runtime_env in your own ray.init() call:

ray.init(runtime_env={"env_vars": {"PYTHONPATH": "/path/to/your/app/src"}})
cache_dit.enable_cache(
    pipe,
    parallelism_config=ParallelismConfig(ulysses_size=2, use_ray=True),
)

Cache-DiT emits a warning when it detects this situation and the pipeline class is from a user-application module.

Quick Start¶

A complete runnable example is available at examples/ray/ray_wrapper_example.py. For example:

# The example is located at cache-dit/examples/ray/ray_wrapper_example.py
git clone https://github.com/vipshop/cache-dit.git && cd cache-dit

# Baseline
python3 examples/ray/ray_wrapper_example.py \
  --model-path $FLUX_2_KLEIN_BASE_9B_DIR \
  --save-path ./tmp/baseline.png

# Ray wrapper with TP=2 and compile enabled
python3 examples/ray/ray_wrapper_example.py \
  --model-path $FLUX_2_KLEIN_BASE_9B_DIR \
  --tp 2 \
  --compile \
  --save-path ./tmp/ray.png
